EdgeLife Technologies E8200

Applications :

- Small Parts

- MSK

- Nerve

- Vascular access

- Lung, Liver, kidney

- Urology

- Obstetrics

- Abdominal

- Renal

- Cardiac

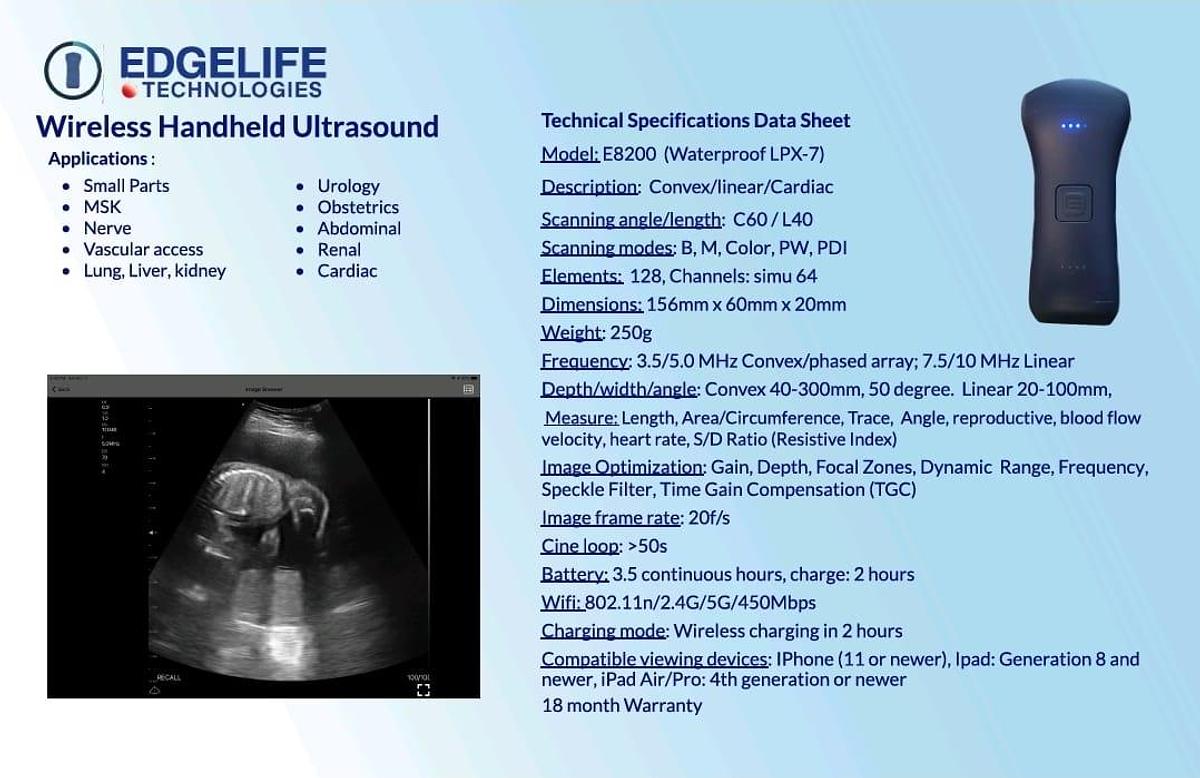

Technical Specifications Data Sheet Model:

E8200 (Waterproof LPX-7) Description: Convex/linear/Cardiac Scanning angle/length: C60 / L40 Scanning modes: B, M, Color, PW, PDI Elements: 128, Channels: simu 64 Dimensions: 156mm x 60mm x 20mm Weight: 250g Frequency: 3.5/5.0 MHz Convex/phased array; 7.5/10 MHz Linear Depth/width/angle: Convex 40-300mm, 50 degree. Linear 20-100mm, Measure: Length, Area/Circumference, Trace, Angle, reproductive, blood flow velocity, heart rate, S/D Ratio (Resistive Index) Image Optimization: Gain, Depth, Focal Zones, Dynamic Range, Frequency, Speckle Filter, Time Gain Compensation (TGC) Image frame rate: 20f/s Cine loop: >50s Battery: 3.5 continuous hours, charge: 2 hours Wifi: 802.11n/2.4G/5G/450Mbps Charging mode: Wireless charging in 2 hours Compatible viewing devices: IPhone (11 or newer), Ipad: Generation 8 and newer, iPad Air/Pro: 4th generation or newer 18 month Warranty
