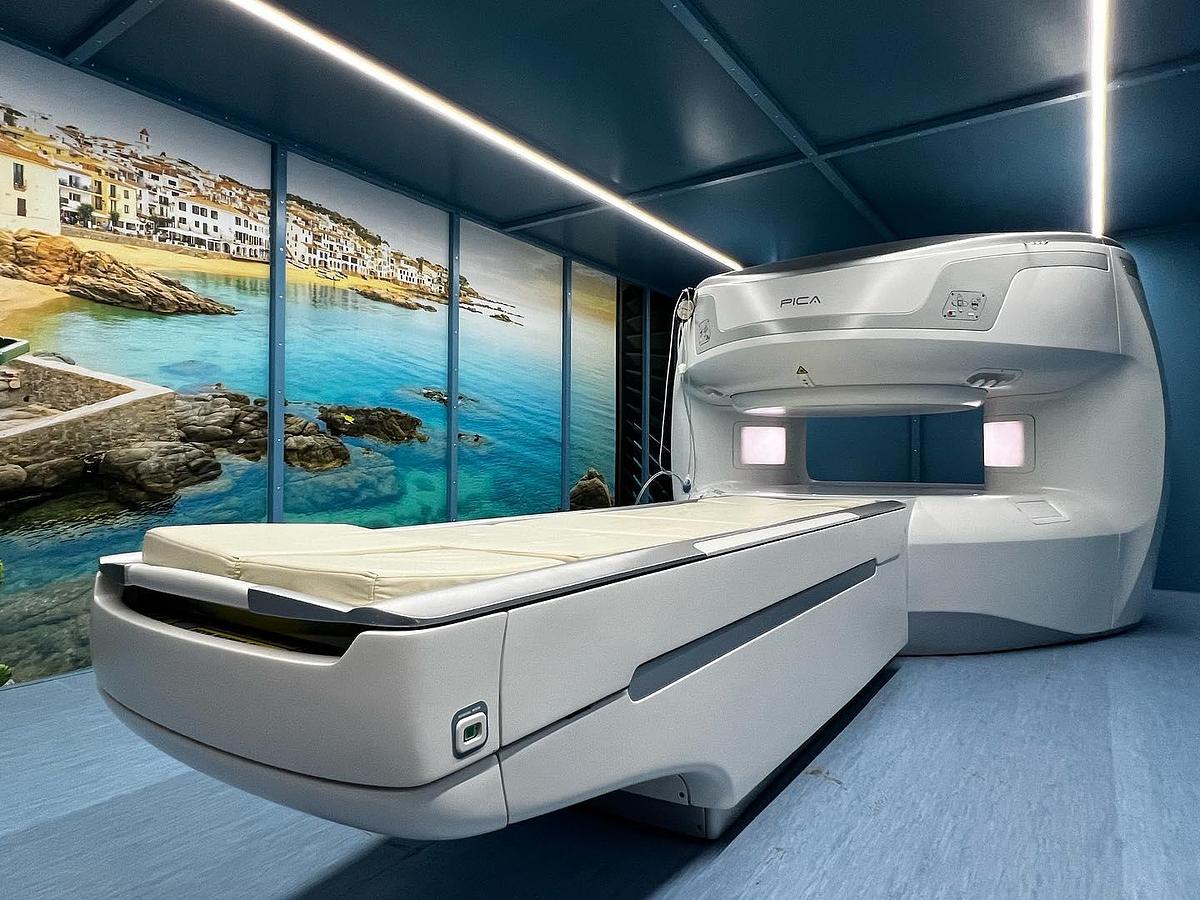

2025 TIME MEDICAL PICA .3T OPEN MRI

2025 TIME MEDICAL PICA .3T OPEN MRI

Description

EQUIPMENT DISCRIPTION:


The Mid-field PICA Whole Body MRI system features an open-architecture design, facilitating whole

body clinical applications and patient comfort.


MAGNET SYSTEM:


- 0.35T Permanent Magnet constructed from high grade Neodymium Ferrite Boron (NbFeB). Includes; Passive 1st, 2nd & 3rd order shimming; fully automated active shimming of 1st order (X, Y, and Z axes); proprietary magnet pole plate design to reduce eddy currents; field stability is < 0.2 ppm/hr.; 40 cm patient opening; 5 Gauss Exclusion line extends to 2.5 m (axial) x 2.5 m (radial) ellipsoid volume.


- Magnet Dimensions: 1,770mm x 2,220mm x 1,590mm (L x W x H) Magnet Weight: 17,000 kg (37,480 lbs)


GRADIENT SYSTEM:


- 33 mT/m peak amplitude, 90 T/m/s slew rate provide the foundation for the PICA’s high-performance gradient platform. This enables PICA to deliver advanced imaging sequences, rapid scan acquisition times, artifact-reducing imaging options and scan parameters that result in thinner slices, smaller FOV’s, higher matrices, shorter TEs, reduced echo spacing, longer echo trains and related technical

and clinical benefits.


RF AMPLIFIER:


- The solid state amplifier operates at 6 kW, 10% duty cycle specifically designed for MRI systems. The operating frequency can be preset from 5 MHz to 30 MHz for unmatched performance and

reliability.


POWER SUPPLY UNIT:


- Line Voltage: 380-480 Vac 3-phase, neutral ± 5%, 3N~ , 50/60 Hz


SYSTEM CABINET:


- Single integrated cabinet to house Gradient Amplifiers, Spectrometer, RF Amplifier, Host Computer

and UPS.


ADVANCED COPPER RF COIL PACKAGE:


- Quad Head Coil

- Quad Neck

- Quad Shoulder Coil

- Quad 14” Body Coil (S)

- Quad 17” Body Coil (M)

- Quad 20” Body Coil (L)

- Quad Volume Extremity Coil

- Quad Ankle Coil

- Quad Wrist Coil


ADVANCED COMPUTER SYSTEM:


- Operating System: Microsoft® Windows® Based

- Imaging Software: PRODIVA MRI Platform

- Data Archive: DVD-RW 4.7 GB

- Display: 24 inch HD 1080p LCD Monitor

- USB Keyboard and Mouse


ADVANCED IMAGE RECONSTRUCTION PROCESSOR:


Separate processor for image reconstruction:

- Multi-Threaded Reconstruction

- Over 1000 images/sec (256 x 256) for 2D reconstruction

- Over 200 Planes/sec (256 x 256) x 64 for 3D reconstruction


ADVACNED CLINICAL PARAMETER PACKAGE:


- FOV: 5cm – 40cm, 0.1 mm increment

- Slice Thickness: 2D: 1-10 mm (0.1 mm increment), 3D: 0.25-10 mm (0.1 mm increment)


- Slice Spacing: 0.1 mm increment

- Min / Max Phase Matrix: 64 / 512

- Min / Max Frequency Matrix: 64 / 512

- Bandwidth: 4 kHz – 100 kHz

- Rectangular FOV


ADVANCED IMAGING ENHANCEMENT PACKAGE:


3 Plane Localizer, 2D Multi-Slice Orthogonal (Axial, Sagittal, Coronal), Single Oblique, Double

Oblique, Multi Slice – Multi Angle Oblique, Fat Suppression, Flow Compensation, Respiratory

Triggering, Rectangular FOV, Variable matrix from 64 to 512 (phase & frequency), RF Pre-Saturation

(SAT), Traveling SAT, No Phase Wrap,

Variable Bandwidth and Variable Rectangular Field of View (RFOV).


ADVANCED IMAGING ENHANCMENT PACKAGE:

3 Plane Localizer, 2D Multi-Slice Orthogonal (Axial, Sagittal, Coronal), Single Oblique, Double Oblique, Multi Slice – Multi Angle Oblique, Fat Suppression, Flow Compensation, Respiratory Triggering, Rectangular FOV, Variable matrix from 64 to 512 (phase & frequency), RF Pre-Saturation (SAT), Traveling SAT, No Phase Wrap, Variable Bandwidth and Variable Rectangular Field of View (RFOV).

Specifications

ManufacturerTIME MEDICAL
ModelPICA .3T OPEN MRI
Year2025
ConditionNew
Stock Number00002
